RaceGauge

System Information

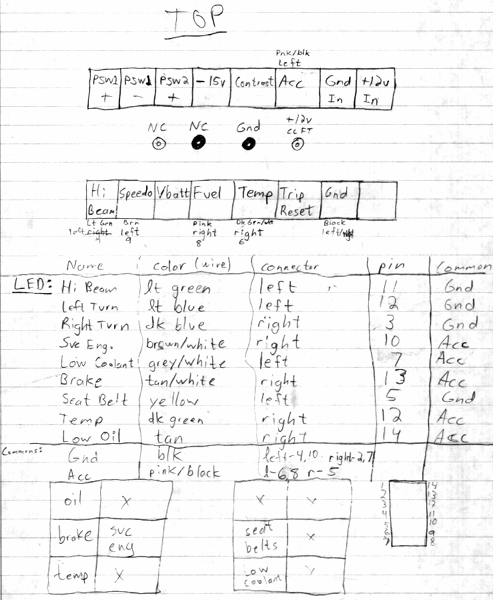

This page contains documents relating to the system integration of the RaceGauge display system and the automobile. The document below shows the physical layout of signals on the RaceGauge MPU Box external terminal strip.

MPU Box Terminal Strip Layout

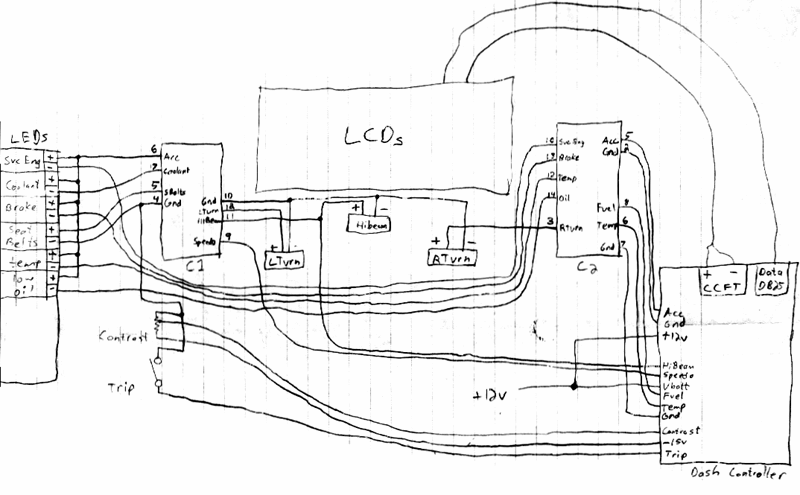

Below is the top-level wiring schematic for the integration of the RaceGauge system with the 1989 Chevrolet Celebrity.

System Wiring
