Automotive Interface Specifications

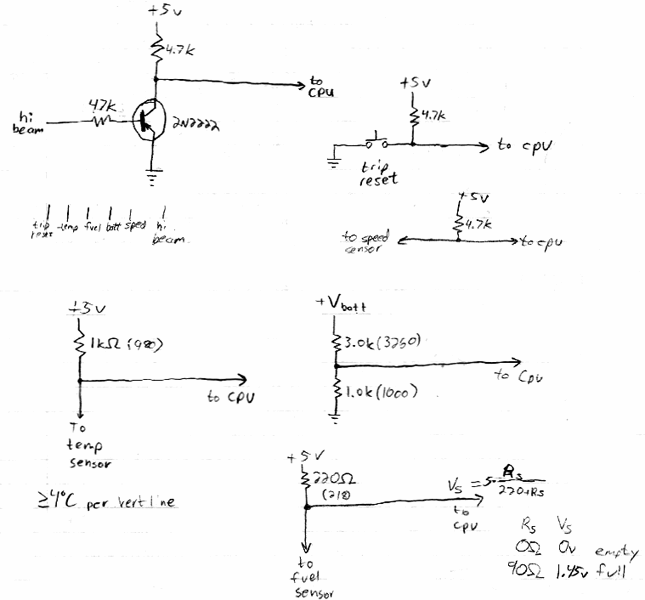

The electrical specifications of the car's sensors and dash circuitry were taken from an ALLDATA automotive documentation CD, which was published by Popular Mechanics and sold at Wal-Mart stores. The individual interface circuits, shown below, are used to allow the HC11 MPU board to read the value of each signal.
