RaceGauge Picture
RaceGauge Electronics

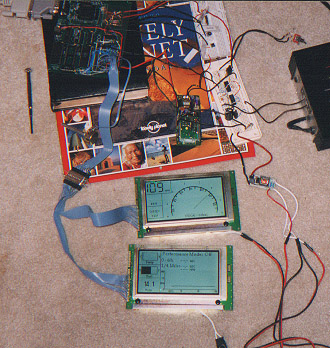

Here is the final test setup, ready for the finishing touches. The small power supply with white wires coming from it, next to the LCD displays, is the high-voltage flourescent backlight supply. The glow from the bright flourescent tubes can be seen reflecting off of the carpet underneath the LCD displays. The small jeweler's screwdriver in the upper left is for changing the RaceGauge computer input signals by tweaking variable resistors on the test signal interface board.
