RaceGauge Picture
RaceGauge Electronics

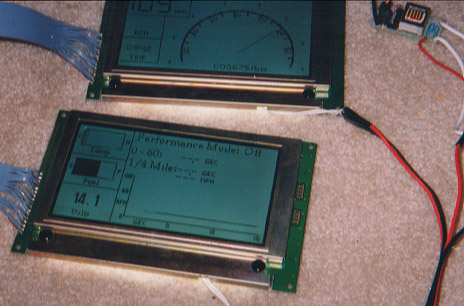

This picture of the two LCD displays was taken during the software development phase of this project. The analog and digital speedometer gauges were both active during this test run, as well as the odometers, the temperature, fuel, and voltage gauges, and the speed v. time graph display. The tiny high-voltage backlight power supply is in the upper right corner of the picture, and the glow from the bright backlights can be seen on the carpet under the LCD displays.
