RaceGauge Picture
RaceGauge Electronics

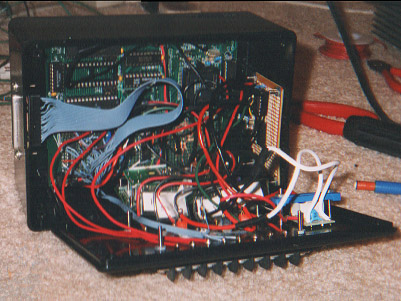

Here is the completed RaceGauge CPU Power box. The interface terminal strip and high-voltage backlight power supply are mounted on the top of the box, which is laying on the floor. The HC11 MPU board is mounted in the bottom of the box, the main power supply is attached to the bottom side, and the power cycling circuit is on the brown PC board on the right side of the box. The DB-25 LCD data connector is attached to the left side of the box.
